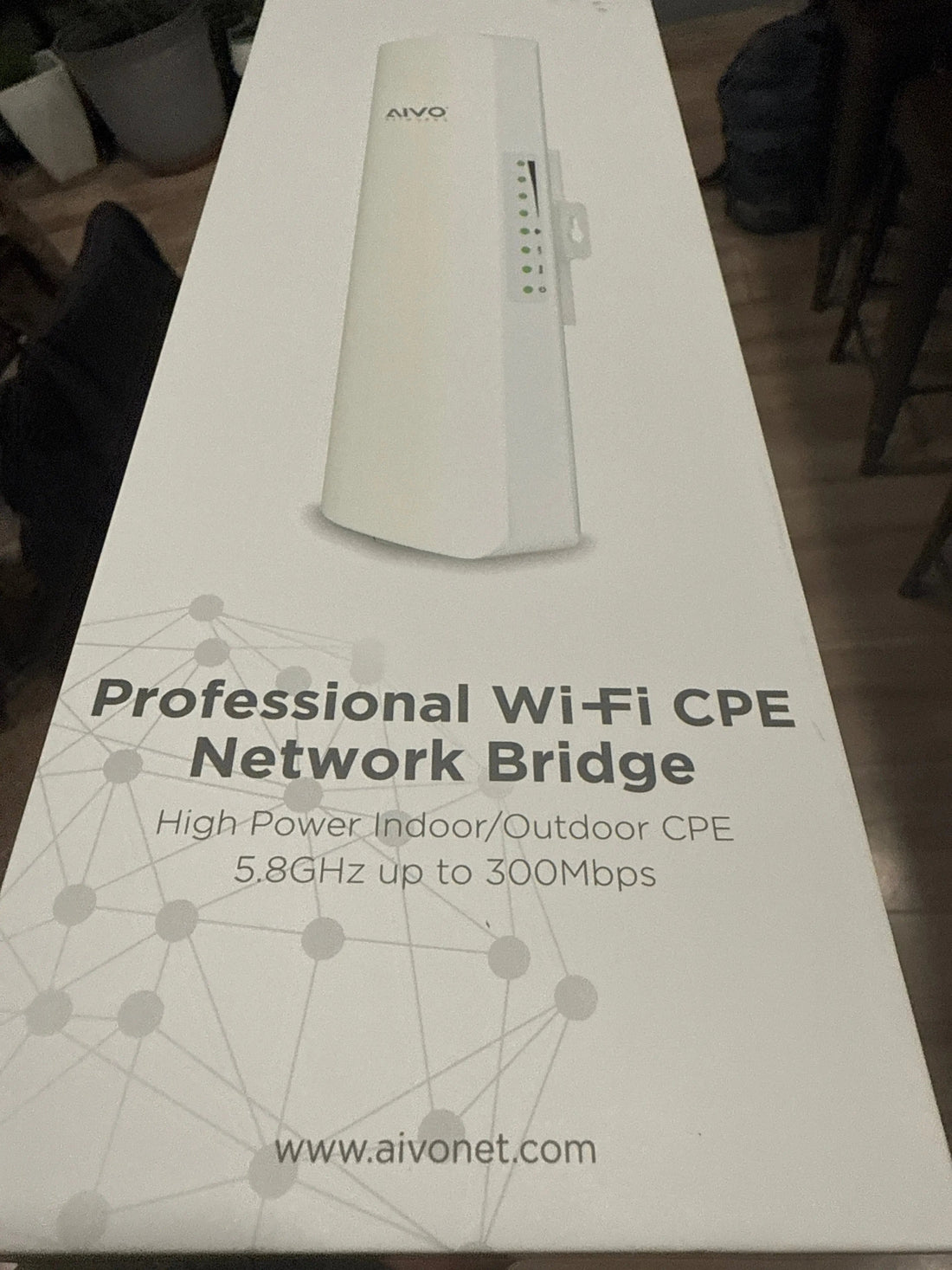

AIVO ANCP3005Q Wi-Fi Bridge: Long-Range Backhaul for PoE Camera Networks

AIVO Networks Wi-Fi Bridge Setup (ANCP3005Q): Long-Range Backhaul for PoE Camera Stations

Deploy AIVO Networks ANCP3005Q as a point-to-point or point-to-multipoint wireless bridge to connect remote camera stations on PoE switches. Powered by enterprise-grade chipsets, this bridge delivers reliable links for surveillance and edge devices with simple AP/Station configuration.

What This Bridge Does

  • Create wireless access points for remote camera clusters fed by PoE switches.
  • Bridge private networks line-of-sight over long distances (with proper alignment and clear Fresnel zone).
  • Work around obstacles in or around buildings where cabling is impractical.
  • Scale up by linking multiple APs and Stations as your site grows.

Why Use It for Video

  • Simple design: AP at the head-end; Station at each remote camera pod.
  • Consistent backhaul: Built for stable streams from multiple IP cameras.
  • PoE-friendly: Power radios and switches cleanly at each node.
  • Enterprise chipsets: Designed for uptime and predictable performance.

Quick Start: AP & Station Configuration

  1. Plan the link: Confirm line-of-sight where possible; choose mounting points and heights; document distances.
  2. Power & wire: Provide PoE to each bridge; connect LAN to your switch (VLANs optional).
  3. Set AP unit: Assign static IP, create SSID, set channel/width per your spectrum plan, set security, save.
  4. Set Station unit(s): Assign static IP, join the AP SSID, apply the same security, save.
  5. Align & test: Aim antennas, verify link quality/throughput, then add cameras and confirm streams.

Best-Practice Tips

  • Mount solidly on rigid structures; re-aim after torqueing hardware.
  • Keep cabling tidy with proper drip loops and shielded connectors outdoors.
  • Segment traffic (optional) with VLANs for cameras vs. admin.
  • Document IP plans, SSIDs, keys, and alignment notes for maintenance.

Setup Video

AIVO ANCP3005Q bridge—AP/Station configuration overview.

Need Design Help?

We plan wireless backhaul for video surveillance and remote devices, including link surveys, mounting, and PoE power design. Request a site visit.

Notes: Real-world range depends on alignment, interference, antenna pattern, and environment. Always follow applicable radio regulations and manufacturer instructions.
